Description

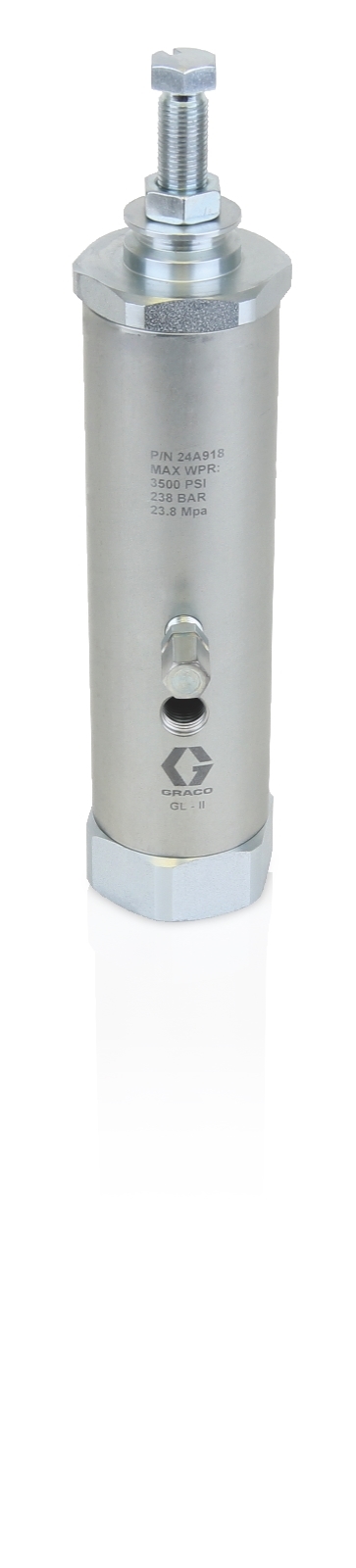

GL-11™ Grease Injector Assembly
Graco
24A918
GL-11 INJECTOR, ASSEMBLY
GL-11™ Grease Injector Assembly
Additional information
| Manufacturer | Graco |
|---|---|
| Primary application | Rugged, medium-pressure metering system for pumping grease; ideal for heavier-duty applications such as mobile mining vehicles, milling, cement batch plants or material processing equipment. |
| Primary uom code | EA |
| Upc code | 6.33955E+11 |
| Model | GL-11 |
| Application | In-Plant Machinery;Off-Road Equipment |
| Compatible material | Grease |
| For use with | Single Line Parallel Automatic Lubrication Systems |
| Maximum working pressure | 241 BAR / 24100 KPA / 24.1 MPA / 3500 PSI |
| Product type | Grease Injector |
| Adjustable | Adjustable |
| Compatible metering device | Single Line Parallel |
| Inlet thread type | NPT |
| Maximum nlgi grade | #2 |
| Maximum output volume | 0.5 IN³ |
| Maximum reset pressure | 600 PSI |
| Minimum operating pressure | 1000 PSI |
| Minimum output volume | 0.05 IN³ |
| Outlet thread gender | Female |
| Outlet thread type | NPS |
| Suggested operating pressure | 2500 PSI |
| Wetted material | Carbon Steel;Stainless Steel;Copper;Fluoroelastomer |
