Description
RECOMMENDED FOR: Marine wet exhaust and general purpose applications. Suitable for coolant lines where tight bends are required.
Gates

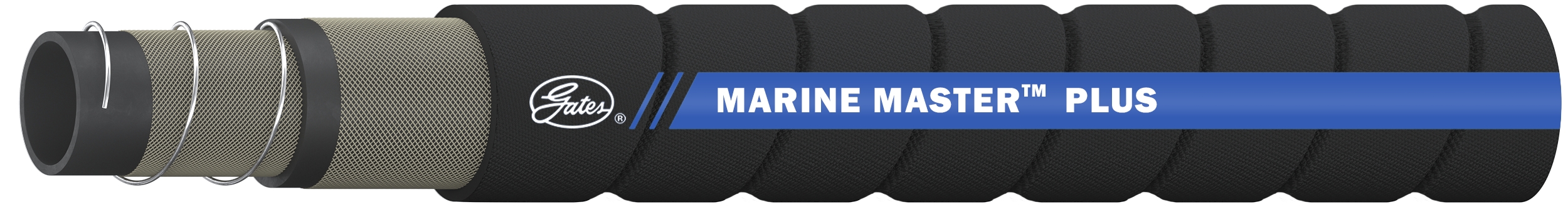

Gates | 46841670. 2-1/8X10 MARINE+ WET EXH 55SD. Marine Master™ Plus Wet Exhaust
46841670
Part Number: 46841670
RECOMMENDED FOR: Marine wet exhaust and general purpose applications. Suitable for coolant lines where tight bends are required.
Additional information
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | Chloroprene – Type A |
| Length | 10 ft / 3 m |
| Max temperature | 100 C / 212 F |
| Min bend radius | 6 in / 152 mm |
| Min order quantity | 400 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube material | Nitrile – Type C |
| UOM | FT |
| Working pressure | 55 psi / 3.8 bar |
| Hose ID | 0.1033 in / 12.99 mm |
| Hose OD | 0.1077 in / 23.992 mm |
| Tube characteristics | Medium oil resistance |
| Cover characteristic | Corrugated |
| Vacuum (Hg) | 20 in / 508 mm |
| SAE specifications | 20R2, 20R5, J2006 |
| Cover standard | ARPM Class C |
| Tube standard | ARPM Class B |
| Second Name | 46841670 |
| Product line | Marine Master™ Plus Wet Exhaust |
