Description
RECOMMENDED FOR: Engine coolant or water hose where tight bends or vacuum is required. Also suitable for air.
Gates

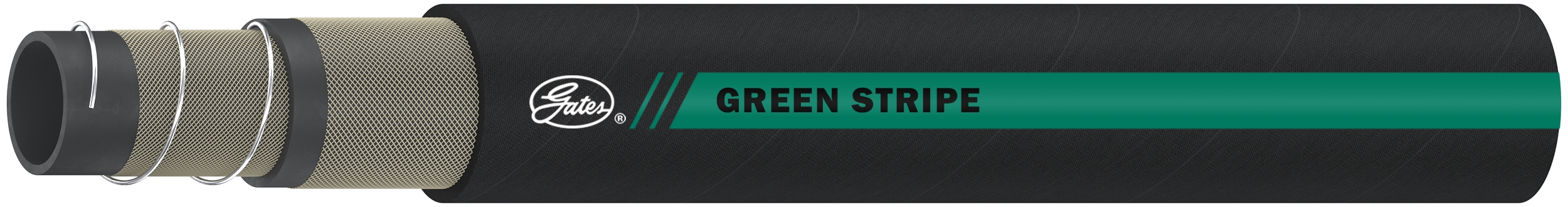

Gates | 46852016. 1X5FT GS COOLANT AIR 100 HW. Green Stripe Coolant and Air Hose
46852016
Part Number: 46852016
RECOMMENDED FOR: Engine coolant or water hose where tight bends or vacuum is required. Also suitable for air.
Additional information
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | EPDM – Type P |
| Length | 5 ft / 1.5 m |
| Max temperature | 125 C / 257 F |
| Min bend radius | 2 in / 51 mm |
| Min order quantity | 1 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube material | EPDM – Type P |
| UOM | EA |
| Working pressure | 100 psi / 6.9 bar |
| Hose ID | 0.101 in / 12.967 mm |
| Hose OD | 0.1054 in / 23.969 mm |
| Cover characteristic | Smooth |
| Vacuum (Hg) | 25 in / 635 mm |
| SAE specifications | 20R2, 20R5 |
| Cover standard | SAE D1 and D2 |
| Tube standard | SAE D1, D2, D3 except air aging |
| Second Name | 46852016 |
| Product line | Green Stripe Coolant and Air Hose |
