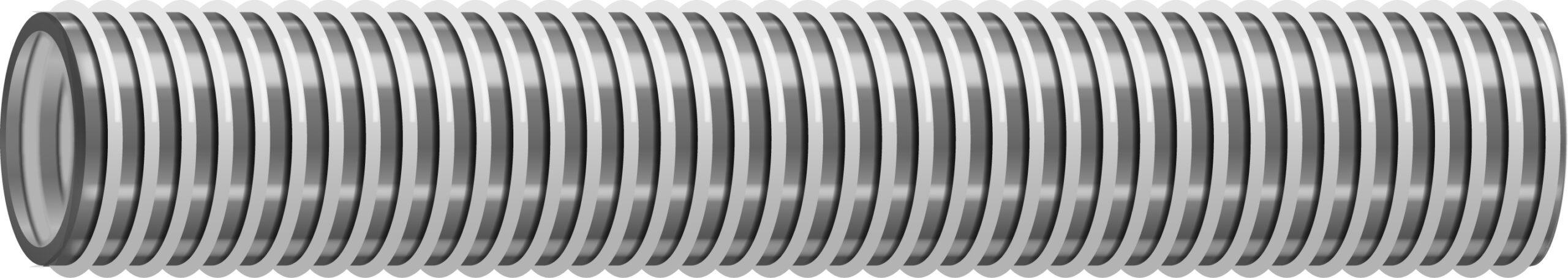

Part Number: 32210076
RECOMMENDED FOR: Transferring fuel oils, diesel fuel or commercial gasolines in applications at temperatures as low as –40°F (–40°C). Compatible with Bio–Diesel fuels up to B20. Hose remains flexible to –20°F (–29°C). For home and heavy–duty commercial service where an abrasion–resistant and non–marking cover is required.
RECOMMENDED FOR: Transferring fuel oils, diesel fuel or commercial gasolines in applications at temperatures as low as –40°F (–40°C). Compatible with Bio–Diesel fuels up to B20. Hose remains flexible to –20°F (–29°C). For home and heavy–duty commercial service where an abrasion–resistant and non–marking cover is required.
| Manufacturer | Gates |
|---|---|
| Cover color | Red |
| Cover material | Carboxylated Nitrile – Type C4 |
| Length | 125 ft / 38.1 m |
| Max temperature | 82 C / 180 F |
| Min bend radius | 8 in / 203 mm |
| Min temperature | -40 C / -40 F |
| Reinforcement | Synthetic textile |
| Tube material | Nitrile – Type C |
| UOM | EA |
| Working pressure | 200 psi / 13.8 bar |
| Hose ID | 0.1421 in / 12.1378 mm |
| Hose OD | 0.1465 in / 23.138 mm |
| Tube characteristics | High oil resistance |
| Cover characteristic | Non-marking |
| Vacuum (Hg) | 10 in / 254 mm |
| Tube standard | ARPM Class A |
| Meets MSHA 2G | YES |
| Second Name | 32210076 |
| Product line | Fuel Master™ Delivery Assemblies |
