Description

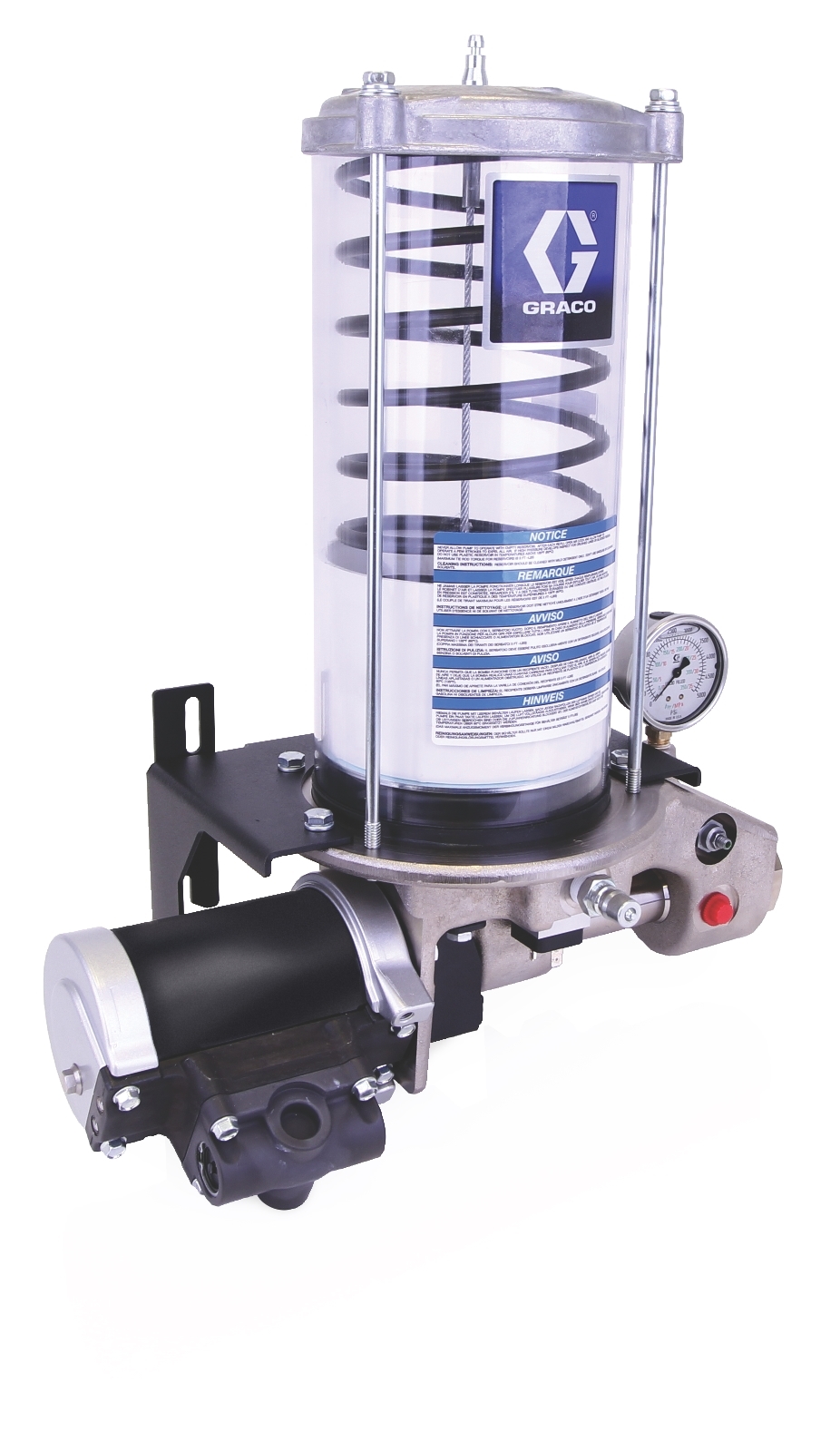

Pneumatic Vent Valve for LubePro™ A4000 Pneumatic Grease Pump
Graco
17U217
LUBEPRO A4000 PUMP, RECIP,LL,GR20LB
Pneumatic Vent Valve for LubePro™ A4000 Pneumatic Grease Pump
Additional information
| Manufacturer | Graco |
|---|---|
| Primary application | Reciprocating Grease and Oil Pump for Automatic Lubrication Solutions |
| Primary uom code | EA |
| Upc code | 7.55653E+11 |
| Model | Trabon |
| Application | In-Plant Machinery |
| Compatible material | Grease |
| Maximum working pressure | 275.8 BAR / 27580 KPA / 27.6 MPA / 4000 PSI |
| Product type | Pneumatic Piston Pump |
| Air inlet size | 1/4 IN / 6.35 MM |
| Air inlet thread type | NPT |
| Compatible metering device | Series Progressive;Single Line Parallel |
| Fluid outlet size | 0.25 IN / 6.3500 MM |
| Fluid outlet thread type | NPT |
| Includes | Low Level |
| Maximum air inlet pressure | 6.9 BAR / 690 KPA / 100 PSI |
| Maximum nlgi grade | #2 |
| Overall height | 20 IN / 50.8 CM / 508 MM |
| Overall width | 40.1 CM / 15.8 IN / 401 MM |
| Power type | Pneumatic |
| Reservoir size | 20 LB |
| Weight | 20.41 KG / 45 LB |
| Wetted material | Polycarbonate;Urethane |
