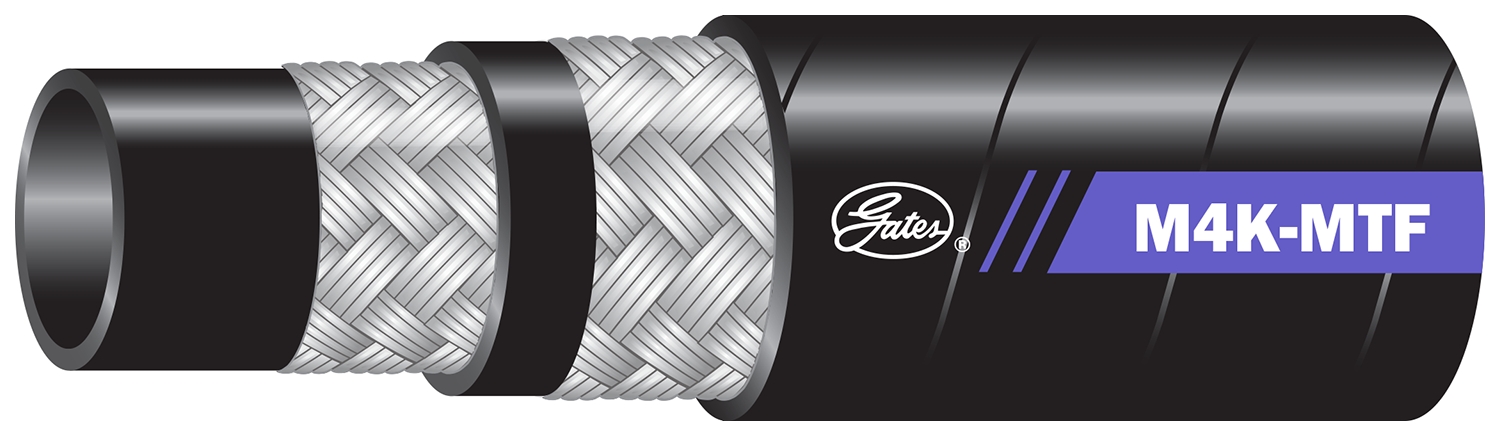

Part Number: 46574053
Recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Meets or exceeds requirements of ISO 18752 Grade B, SAE 100R19, EN 857 2SC and ISO11237 R19. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings (-4 to -12), Stainless Steel B Couplings (-4 through -8), Stainless Steel S Couplings (-10 to -16).
Recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Meets or exceeds requirements of ISO 18752 Grade B, SAE 100R19, EN 857 2SC and ISO11237 R19. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings (-4 to -12), Stainless Steel B Couplings (-4 through -8), Stainless Steel S Couplings (-10 to -16).
| Manufacturer | Gates |
|---|---|
| Dash size | 16 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 165 |
| UOM | FT |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 2-braid, wire |
| Dynamic WP | 4000 psi / 275.8 bar |
| Min burst pressure | 16000 psi / 1103.2 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 1 in / 25.4 mm |
| Hose OD | 1.52 in / 38.6 mm |
| Tube material | Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | MegaTuff |
| Cover type | MegaTuff |
| Cover color | Black |
| Length | 165 ft / 50 m |
| Min bend radius | 4.5 in / 215.9 mm |
| SAE specs & DOT | 100R19 |
| Meets MSHA 2G | YES |
| Second Name | 46574053 |
| Product line | M4K Hydraulic Hose |
