Graco 114903 - GL-1 INJECTOR,THREE POINT

Graco 114903 – GL-1 INJECTOR,THREE POINT

Part Number: 114903

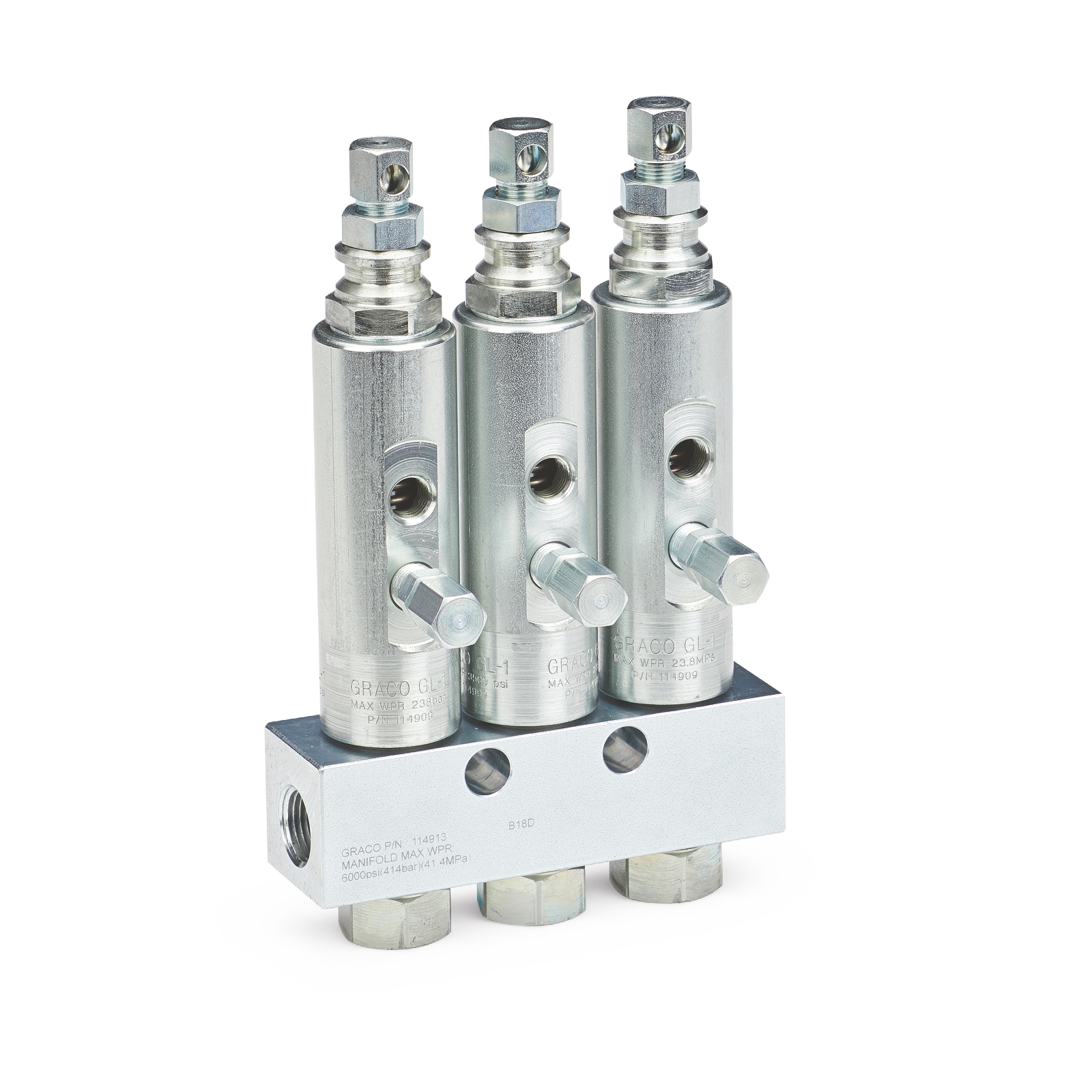

GL-1™ Grease Injectors – 3 Injectors and Manifold

Description

GL-1™ Grease Injectors – 3 Injectors and Manifold

Manufacturer	Graco
Primary application	High volume output at high pressures for the most demanding applications
Primary UOM Code	EA
UPC Code	633955887305
Model	GL-1
Application	In-Plant Machinery;Off-Road Equipment
Compatible material	Grease
For use with	Single Line Parallel Automatic Lubrication Systems
Maximum working pressure	241 BAR / 24100 KPA / 24.1 MPA / 3500 PSI
Product type	Grease Injector
Adjustable	Adjustable
Compatible metering device	Single Line Parallel
Cycle indicator	Visual
Dispense outlet size	0.13 IN / 0.33 CM / 3.3 MM
Dispense outlet thread type	NPT
Inlet thread type	NPT
Maximum nlgi grade	#2
Maximum output volume	0.08 IN³
Maximum reset pressure	600 PSI
Minimum operating pressure	1850 PSI
Minimum output volume	0.008 IN³
Outlet thread type	NPT
Wetted material	Carbon Steel;Stainless Steel;Copper;Fluoroelastomer
