Description
RECOMMENDED FOR: For use in fuel, oil, coolant, water and alcohol lines requiring MIL–DTL–6000.
Gates

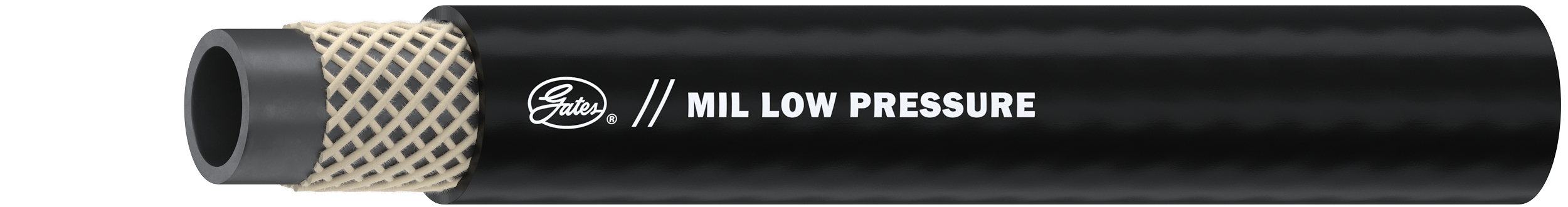

Gates | 33360419. 1-3/4X10 LOW PRES FUEL&OIL 150. MIL Low Pressure Fuel and Oil Hose
33360419
Part Number: 33360419
RECOMMENDED FOR: For use in fuel, oil, coolant, water and alcohol lines requiring MIL–DTL–6000.
Additional information
| Manufacturer | Gates |
|---|---|
| Cover color | Black |
| Cover material | Chloroprene – Type A |
| Length | 10 ft / 3 m |
| Max temperature | 121 C / 250 F |
| Min bend radius | 16 in / 406 mm |
| Min order quantity | 600 |
| Min temperature | -40 C / -40 F |
| Reinforcement | Braided, synthetic textile |
| Tube material | Chloroprene – Type A |
| UOM | FT |
| Working pressure | 150 psi / 10.3 bar |
| Hose ID | 0.969 in / 12.926 mm |
| Hose OD | 0.1013 in / 23.928 mm |
| Cover characteristic | Smooth |
| Second Name | 33360419 |
| Product line | MIL Low Pressure Fuel and Oil Hose |
